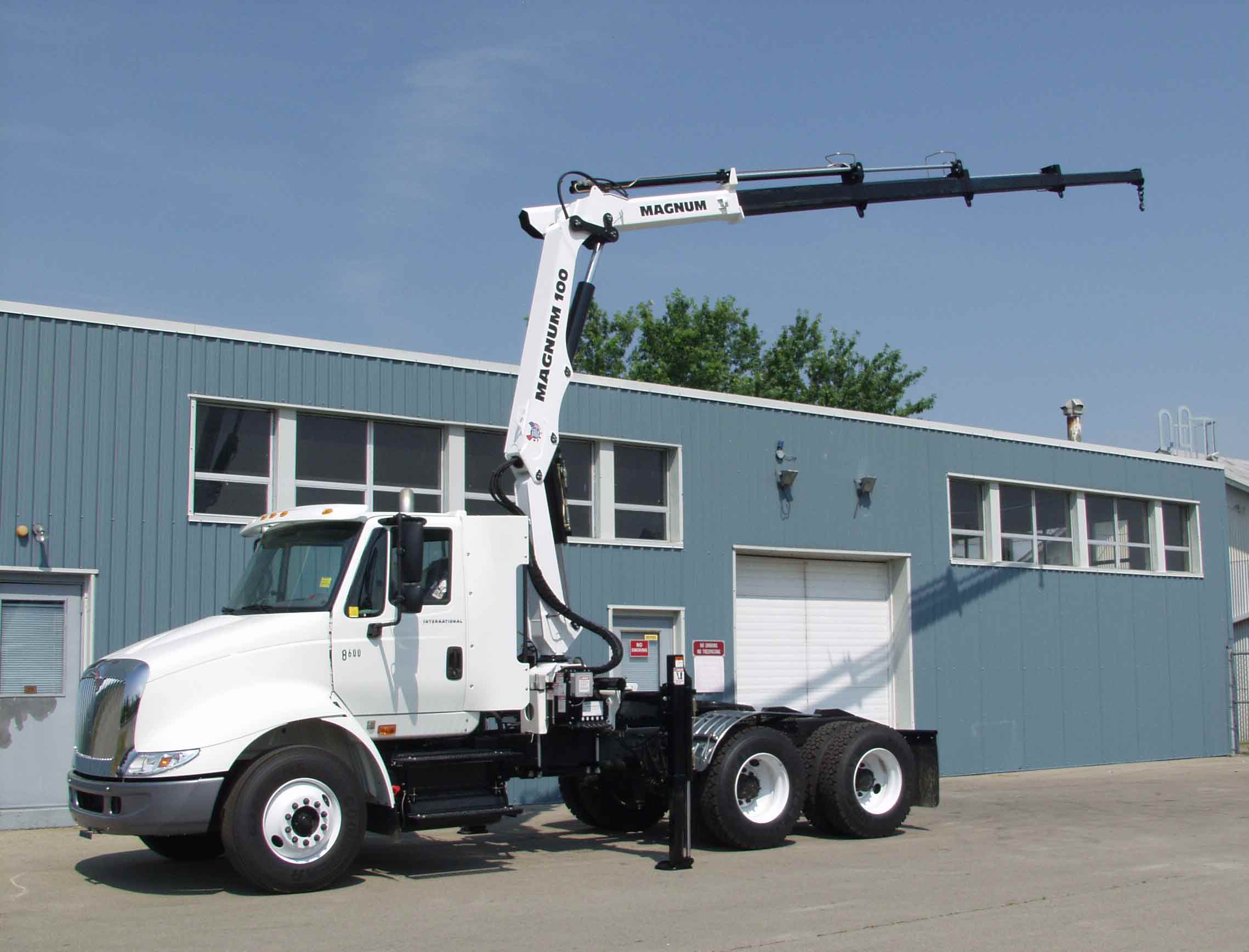

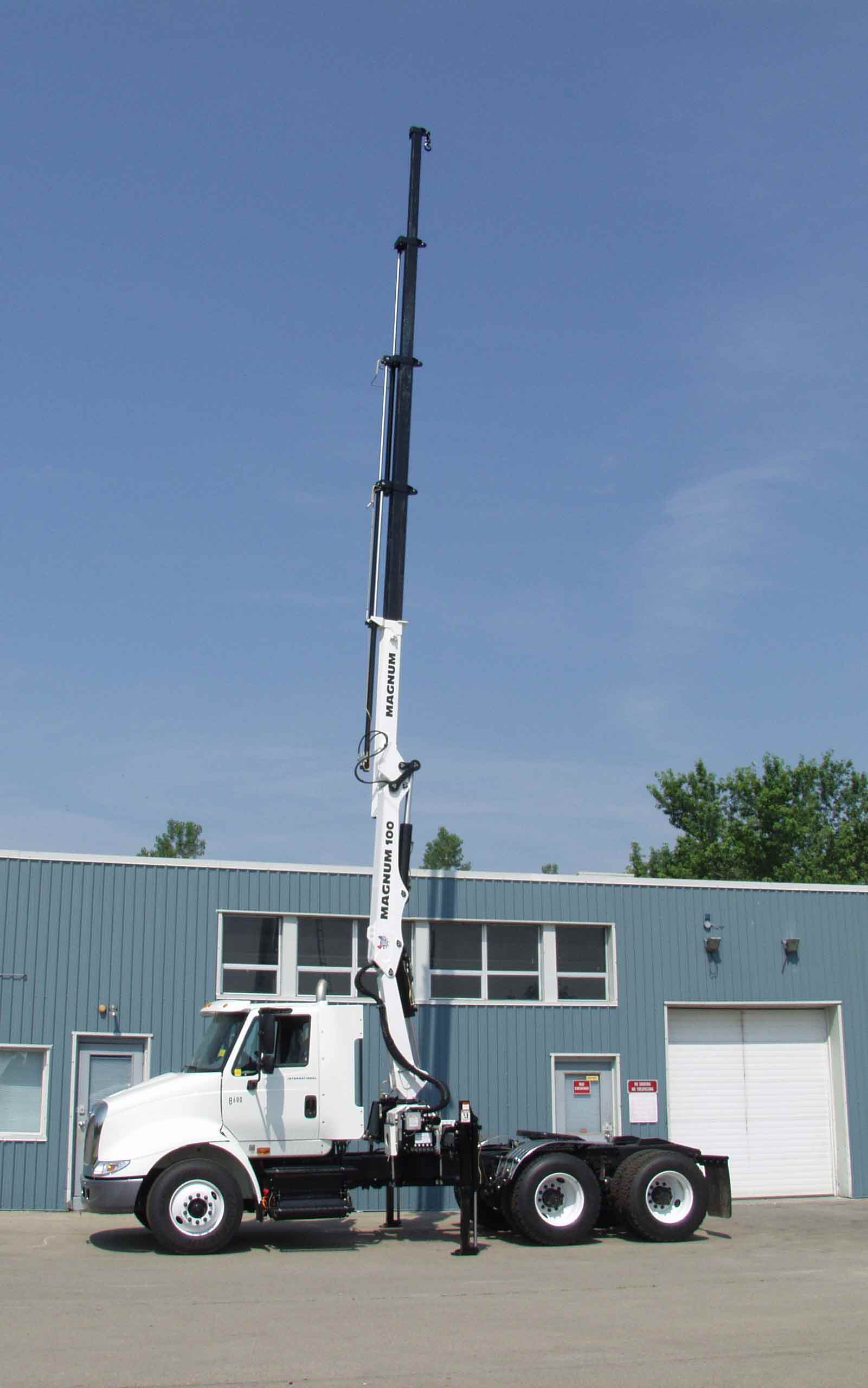

Magnum 100-1H.

Nominal Crane Rating 72,474 ft-lbs 10 Meter-Ton

One Hydraulic Extension

10,900 lbs @ 6 6
    5,140 lbs @ 14 1
 3,600 lbs @ 20

Magnum 100-2H

Two Hydraulic Extensions

9,000 lbs @ 6 7
    4,808 lbs @ 14 6
   3,324 lbs @ 20 5
   2,554 lbs @ 26 4

Magnum 100-3H

Three Hydraulic Extensions

   9,000 lbs @ 6 7
4,536 lbs @ 15
3,124 lbs @ 20
    2,373 lbs @ 26 9
     1,924 lbs @ 32 8

        Magnum 100-4H

Four Hydraulic Extensions

    4,275lbs @ 15 5
     2,900 lbs @ 21 5
   2,170 lbs @ 27   3
  1,730 lbs @ 33 2
     1,445 lbs @ 39 1
